1.Basic Introduction

This equipment is used to produce disposable plane masks. The body belongs to one-to-one type. Due to the use of advanced servo motors to replace stepper motors or cylinders, the speed can be comparable to one-to-two type, and it is much more stable.

Different from the traditional pneumatic one-to-one or one-to-two model, this equipment is a new generation of fully automatic plane mask machine with high-speed filming and high-speed welding ear straps, and at the same time, it has the function of inward folding of the ear straps.

In order to improve the stability and yield of the machine, the electronic parts and power components used in the equipment are internationally well-known, for example: the sensor we use is OMRON, the PLC controller we use Mitsubishi, the main motor we use It's Panasonic.The overall frame is welded with square steel, and the surface is painted with computer paint; the bottom plate is made of steel plate and the surface is hard chrome plated; the surface of the aluminum parts of the machine is hardened; the hard material of the sliding parts is heat treated; the operation panel is man-machine interface, touch screen, support Chinese and English , Japan, and South Korea language; once the product was launched, it was quickly adopted by a large number of customers in mainland China, South Korea,



New Upgraded Mask Machine(Support Korea Free Onsite Installation and Adjusting Service)

2.Specification



Machine Size

185mm x 95mm / 175mm x 95mm / 145mm x 90mm / (other size needs 7 days)

Material width

195mm / 185mm / 175mm / 145mm

Production capacity

60 pcs-70pcs/minutes(80-100pcs/minutes)

Power supply

220V/380V,50HZ/60HZ

Air supply

0.5∽0.7Mpa

Rated power

7.5kw

Machine size

Feeding rack

1650mm x 750mm x 1365mm

Body

1650mm x 700mm x 1218mm

End

1700mm x 700mm x 1500mm

Weight

Each part is less than 200KG

Post code

8451.50.9000

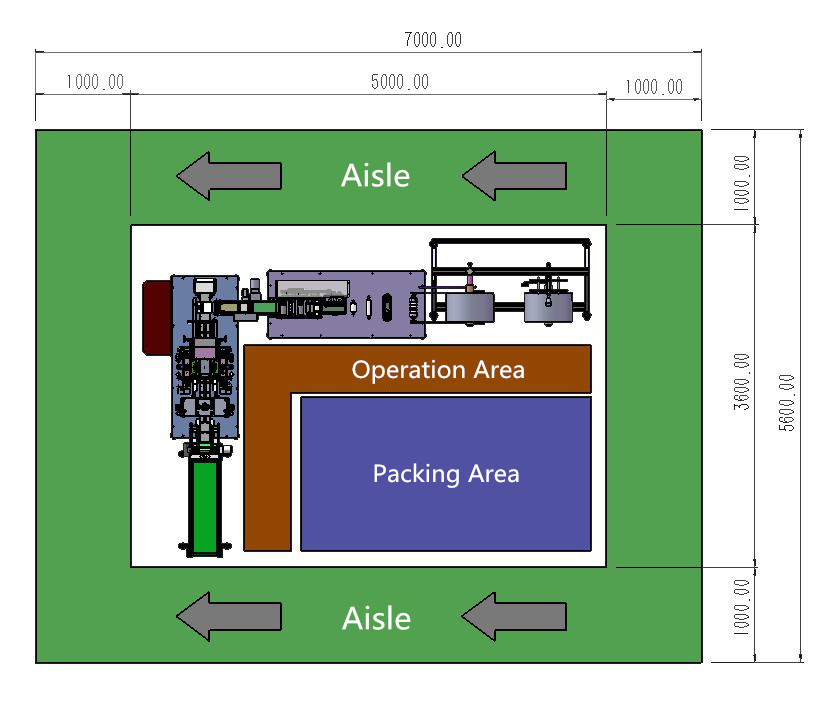

3. Drawing of the Machine size:

There are three parts in this production linethey are feeding rack1650mm x 750mm x 1365mm)、body1650mm x 700mm x 1218mm)、end1700mm x 700mm x 1500mm.And the feeding rack and body can be called cutting mask machine and the end can be called welding machine.

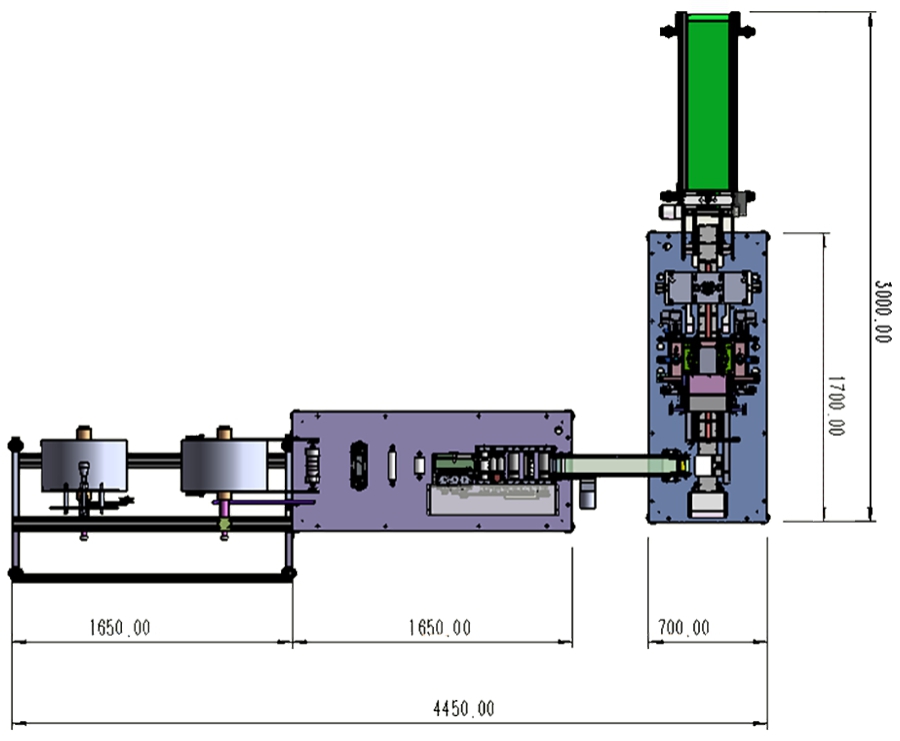

3.1. Top view

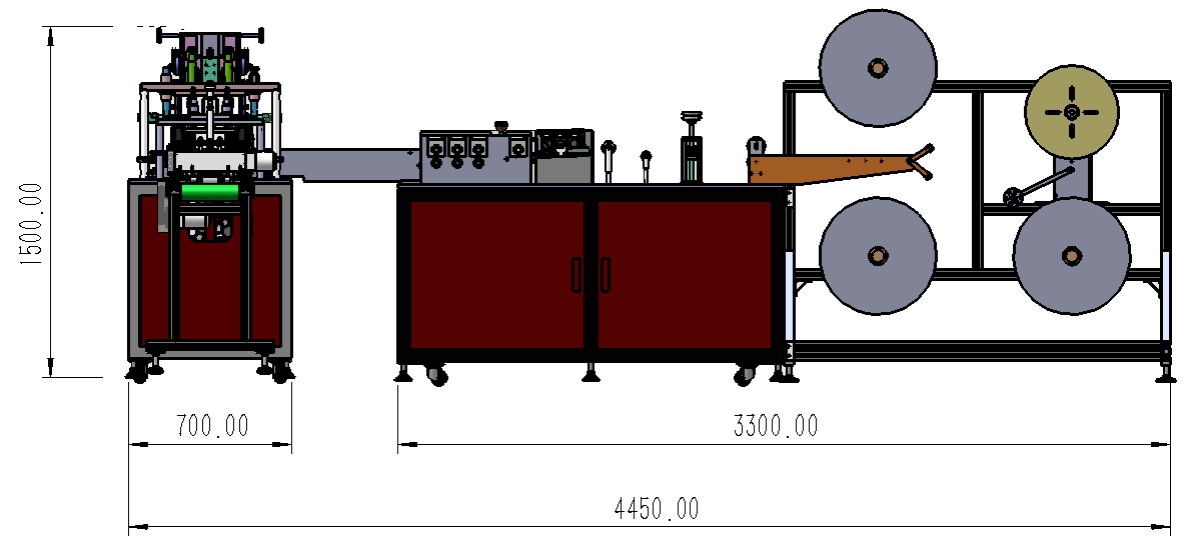

3.2. Side view

5.Main configuration and production process

Parts Name

Assembling position

BRAND

Qty

20k, 2600w,Ultrasonic, digital frequency tracking

Front

XIEHE

1

20k, 2000w,Ultrasonic, digital frequency tracking

Back

XIEHE

2

1000w motor

Front,Back

Matsushita

2

1:5 Reducer

Front,Back

~

2

Servo motor

Back

Panasonic

7

80 Step motor

Back

Leadshine

4

PLC control

Front,Back

XINJIE

2

High precision tension control system

Feeding rack

~

3

The whole frame is welded with square steel, and the surface is painted with computer paint; the bottom plate is made of steel plate and the surface is hard chrome plated; the surface of the aluminum parts is hardened; the last part of the mask comes with a system for folding the ear strap. Sliding parts hard material heat treatment; operation panel, man-machine interface, touch screen, support Chinese, English, Japanese, Korean four languages

6.Precautions

6.1. The warranty period of the main part of this product is one year, and the ultrasonic warranty is 3 months.

6.2. Before the machine is shipped from the factory, we will ask the customer to check and confirm the whole machine. The contents of the acceptance include the machine's performance, fluency, production capacity, and yield rate. If the equipment needs to be re-debugged due to improper transportation or other human factors after leaving the factory, our company can provide paid services. The specific service price will be separately agreed according to market conditions or agreed by the contract;

6.3. The machine should be noted when handling: it is best to use a forklift or crane when handling. When using the forklift or crane, you should hold the bottom of the machine, but pay special attention not to press the cable. When carrying on level ground, it can be carried by manual hydraulic truck or directly pushed by the caster of the machine. In order to prevent the four casters on the bottom of the machine from being stressed for a long time, after transporting the machine to the designated position, the four feet on the bottom of the machine should be fixed to support the machine.

6.4. When turning on the power, check whether the main power line is correct.

6.5. Before the adjustment, installation and adjustment of each part, the power switch must be turned off, or the safety switch must be pressed to confirm and implement it to ensure the safety of the operator and the equipment.

6.6. After adjusting each part, the screws and nuts must be locked to avoid loosening, which can ensure the stability of the printing effect and extend the reliability and life of the mechanical equipment.

6.7. In case of emergency or abnormal situation, the safety switch should be pressed immediately, the machine will stop running to maintain the safety of the operator or protect the equipment from damage.

6.8. The adjustable screw parts on the machine table are lubricated with mechanical oil.

6.9. Please add lubricating oil to the moving parts of the machine regularly.

6.10. Please use the device according to the requirements of the device environment.

6.11. The continuous production time per day shall not exceed 22 hours.

6.12. Make sure that the ultrasonic cooling fan and knife mold cooling fan are always in working state during production operations;

7. Equipment usage environment

7.1. The ambient temperature is required to be normal temperature.

7.2. Humidity requirement is 40% -80%. There is no condensation and a dehumidifier should be installed.

7.3. Power grid requirements: 220V / 50Hz or 220V / 60Hz.

7.4. Fluctuation of power supply grid: ± 5%, grid ground meets international requirements. In areas where the voltage amplitude is above 5%, electronic automatic voltage stabilizing and current stabilizing devices should be installed.

7.5. There should be no strong electromagnetic signal interference near the installation equipment. Avoid radio transmitting stations (or relay stations) around the installation site.

7.6. Foundation amplitude: less than 50um; vibration acceleration: less than 0.05g. Avoid a lot of machine tools such as stamping nearby. The space requirements of the equipment must be smoke-free and dust-free, to avoid working environments with serious dust such as metal polishing and grinding.

7.7. Air pressure: ≥0.6MPa.

7.8. In some environments, anti-static floors should be installed, and shielding should be strengthened.



8. Normal maintenance of equipment

8.1. The production workshop using the machine should be kept neat and clean.

8.2. The appearance of the machine should be kept neat and clean, requiring frequent scrubbing.

8.3. The sliding parts of the machine should always be filled with non-polluting lubricant.

8.4. When not using the machine for a long time, cover the machine to prevent dust.

8.5. When the machine is not used for a long time, the input power of the machine should be cut off.

8.6. When the machine is not used for a long time, the rusty part of the machine should be coated with protective oil.

9. Installation, commissioning and training

9.1. Unless otherwise required in writing, the acquirer is responsible for receiving, unpacking, and transporting the unit to the installation site; and preparing related electricity and gas to the installation site.

9.2. The supplier is responsible for equipment installation, commissioning and system integration.

9.3. After the installation is completed, the two parties will conduct small batch trial production of their equipment, and the small batch trial production is qualified and approved by the purchaser before being put into formal mass production.

9.4. The supplier provides free training for the relevant personnel on the demand side. The content includes the normal use of equipment, maintenance, fault analysis and troubleshooting, operation safety and emergency procedures.

9.5. Due to the impact of the epidemic, products exported to countries other than South Korea will only be supported by English mail;

9.6. We have recorded some video tutorials with English letters for foreign customers. If you need, please email to contact us.
